Archive for May, 2017

Brake Testing, Servicing & Diagnostic Tools for Commercial Vehicle Workshops

May 24th, 2017 Comments off

Brake & Diagnostic Products from aide automotive

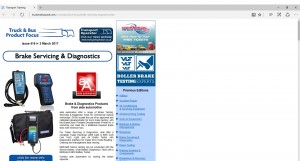

Truck & Bus Product Focus Feature Brake Servicing & Diagnostics had a wealth of product information recently.

aide automotive advertised a range of Brake Testing, Servicing & Diagnostic Tools for commercial vehicle workshops.
With the Bowmonk BrakeCheck Portable Decelerometer Printer kit, a workshop can meet the 3 additional required brake tests with minimum fuss
For Trailer Servicing & Diagnostics, aide offer a complete Trailer Electrical (ABS Light & EBS CAN Line Test), Light and Air Brake Tester with Diagnostics interface for Trailer ECU Code Reading / Clearing and management data viewing.
EBS/ABS Sensor Master testing can be conducted with the Sensor Master, while Battery Diagnostics Tests with a Midtronics MDX Battery Tester.
Contact aide automotive for any questions via email – info@aideautomotive.comor phone 0115 8456471
Bowmonk BrakeCheck

Brake Testing, Servicing & Diagnostic Tools for Commercial Vehicle Workshops

Categories: Automotive Tools and Accessories Tags: , , , , , , , , , , , , , , , , , , , ,

ISOCheck tests a trucks ISO7638 Socket

May 19th, 2017 Comments off

aide automotive launches improved ISOCheck

EBS ISOCheck Now Available In Addition To the ABS ISOCheck – Review Products Details & Buy Online

Commercial Vehicle Equipment Supplier aide automotive Has Launched An Updated Version Of The ISOCheck

ISOCheck tests a trucks’ ISO sockets in order to help identify ABS or EBS faults.



The latest iteration of the system – ISOCheck EBS – has been designed to test electronic braking systems incorporating a CAN line test.

“Trucks that were first used on or after 1 May 2002 must be fitted with A ISO 7638 connection,”

“If a truck is fitted with an Electronic Brake System, and is also towing a trailer that is fitted with EBS, then a 7-core cable must be used.

Like the ISOCheck ABS tester, ISOCheck EBS tests the ISO Socket 7638 pins 1 to 5, but also tests pins 6 and 7, the EBS CAN lines.

Alongside the standard ABS & EBS ISOChecks we can also offer a diagnostic EBS ISOCheck.

ISOCheck EBSPlus test pins 1 to 7, and identifies the exact pin at fault.

Once the initial power test is complete with a RED fault light, the ISOCheck will then go into diagnostic mode and flash a count sequence in relation to the faulty pin,

The ISOCheck product range has benefited from a complete redesign, incorporating the latest electronics technology which enables future proofing truck and trailer brake systems.

ISOCheck can be used to test all Wabco, Knorr-Bremse and Haldex systems, from the early generations to the latest.

Testing is simple and easy,

ISOCheck can be used in many ways: fault-finding by the roadside or as an inspection sheet test within a workshop.

ISOCheck really becomes the perfect test tool on a dark wet night. The quick test and the bright (GREEN) OK / (RED) FAULT indicator increases test and repair efficiency.

The system can also be used continuously between a unit and trailer as a constant visual aide.

To purchase the ISOCheck product range via our online PayPal shop – Click On Purchase ISOCheck Now!

More From Matthew Burke on 0115 8456471 or matt@aideautomotive.com



ISO7638 Truck Tester

ISOCheck tests a trucks’ ISO sockets in order to help identify ABS or EBS faults.

Categories: Automotive Tools and Accessories Tags: , , , , , , , , , , , , , , , , , , , ,

Truck Fifth Wheel Lube Liner Plates For Brigg Haulage

May 10th, 2017 Comments off

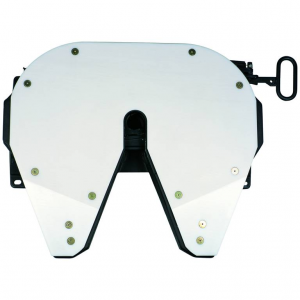

Truck Fifth Wheel Plate

Brigg Haulage have now purchased over 8 Fifth Wheel Lube Liner Plates

The self-lubricating plate for the fifth wheel results in a perfectly lubricated anchorage for your vehicle. Made of a high-density plastic material, this provides significant levels of resistance and durability. Our Truck fifth wheel autolube liner removes the need to regularly lubricate the plate.
If you are not doing repeated drops, it is not unusual for the Lube Liner to last up to 1½ years before needing to be replaced.
To improve performance and reducing operating costs, customers have fitted a durable Truck Fifth Wheel Lube Liner. This high-density polyethylene disc helps removes lubricating problems by eliminating the need for 5th wheel plate grease. Lube Liners attach to a trailer’s kingpin and provide constant lubrication for easier handling, cleaner operation, safer trailing and more reliable performance during on-the-road operations.
It removes the danger of a dry 5th wheel plate and it ends the need to clean plate grease from your tractor and trailer. By replacing the need for lubricating grease, the plate also reduces the possibility of fire from displaced grease falling onto the hot exhaust or onto electronic components.
The minimum life of our liners is typically around 250,000 miles. However, improved driving conditions can result in a considerably longer life of around 500,000 miles.
Brigg Haulage have now purchased over 8 Truck Fifth Wheel Lube Liner Plates for the fleet. Adding a new Lube Liner to a trucks fifth wheel when a truck is under a service routine minimises time off the road and helps spread the purchase cost.
Contact aide automotive Ltd for Fleet Quotes Or technical questions. – 0115 8456471
Truck & Trailer Improved Handling

Brigg Haulage have now purchased over 8 Fifth Wheel Lube Liner Plates

Categories: Automotive Tools and Accessories Tags: , , , , , , , , , , , , ,

Truck ISO Tester Starts To Sell!

May 4th, 2017 Comments off

ISOCheck Re Launch & New User Guide

The ISO tester is an advanced circuit tester, it tests a trucks ISO 7638 socket, trailer susie and ABS/EBS functions.
With the launch now well under way, we can detail here the latest user guide.
When using the ISOCheck on a tractor and trailer, please make sure all health & Safety procedures are in place.
The ISOCheck is a test product & a diagnostic tool, the test lead will quickly identify where the fault is .i.e. on a tractor unit, a trailer or the existing Susie lead.
Testing a Tractor Unit
Firstly make sure the ignition is off in the tractor unit, remove the existing Susie lead that is fitted into the ISO socket.
Apply the ISOCheck to the ISO7638 socket on the tractor unit, fit the end with the clear Perspex modification, for future reference this is called “the ISOIndicator”.
Turn on the ignition, with all voltages and earths correct and also the ABS warning light “off” the ISOIndicator will light up GREEN.
If any of the voltages, earths or the warning light circuit is faulty, then the ISOIndicator will light up RED (or warning light on), this indicates a fault with the tractor unit, with the EBSPlus version the lead will now go into diagnostic mode and flash a count sequence in relation to the pin that is at fault. i.e. 5 flashes indicates PIN 5 “the warning light control wire”.
If the ISOCheck Truck Test resulted in Green and to confirm the trailer has a fault, not follow the trailer test procedure.
Testing the Trailer
Turn the truck ignition off.
Plug the ISOCheck Indicator into the trailer, turn on the ignition. The trailer warning light should activate on the truck dash board and the ISOCheck will light up RED.
The warning light should go out after 2 seconds and the ISOCheck will go GREEN, this means the trailers braking system is working at standstill.
If the warning light stays on, then drive the tractor and trailer above 10KPH, the warning light should go out and the ISOCheck will go GREEN. This proves the braking system is working correctly.
If all is working correctly and there is still an ABS fault light, this would mean the existing Susie lead is probably faulty. If the tester stays RED after a drive, stop the unit and trailer and remove the ISOCheck from the trailer. If the tester stays RED there is a power supply fault from the tractor unit or warning light fault, if the ISOCheck Indicator goes GREEN then there is a fault in the trailer system.
Contact aide automotive for any questions via email – info@aideautomotive.com or phone 0115 8456471
EBS & ABS Trailer Test

ISOCheck Is a Electrical Truck Brake Tester
